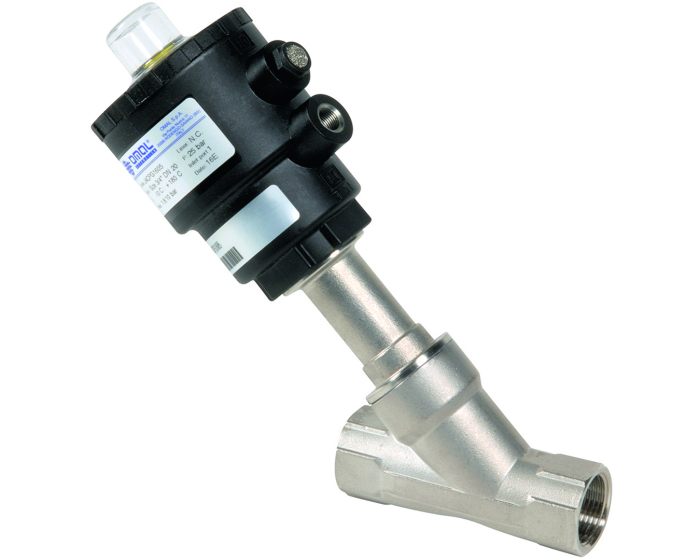

ARES® stainless steel actuated angle seat valve 1450/4 normally closed

€178.21 (excl. btw)

The ARES Type 1450/1454 Pneumatic Valve is a normally closed (NC) stainless steel valve for all compatible media.

In stock Subject prior to sales
Categories : Overig

Documenten:

Certificate of conformity	Download
Certificate of conformity	Download
Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

Specification	Value
Option certificate 3.1	Yes
Maximum delta P (bar)	16
ATEX compatible	No
DN	DN15 - 1/2''
Face to Face (mm)	85.0
Gasket	PTFE
Kv (m³/h)	5.70
Body material	Stainless steel CF8M (1.4408)
Bearing	PTFE
Position	Normally closed
PS (bar)	25
Connections	BSP FF
Control head	50
TS max (°C)	180
TS min (°C)	-10
Flow entry	Above the seat
Solenoid pilot valve ways	2/2
Warranty period	1 year
CE	Excluded (Article 4. §3)

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
605	BSP FF Stainless steel CF8M (1.4408) Above the seat 50 DN15 - 1/2''	1450304	S1000558	€178.21 (excl. btw)	add to cart
606	BSP FF Stainless steel CF8M (1.4408) Above the seat 50 DN20 - 3/4''	1450305	S1000559	€192.00 (excl. btw)	add to cart
607	BSP FF Stainless steel CF8M (1.4408) Above the seat 63 DN25 - 1''	1450406	S1000560	€228.64 (excl. btw)	add to cart
608	BSP FF Stainless steel CF8M (1.4408) Above the seat 90 DN32 - 1''1/4	1450507	S1000561	€326.40 (excl. btw)	add to cart
609	BSP FF Stainless steel CF8M (1.4408) Above the seat 90 DN40 - 1''1/2	1450508	S1000562	€395.99 (excl. btw)	add to cart
610	BSP FF Stainless steel CF8M (1.4408) 50 Below the seat DN15 - 1/2''	1454304	S1000563	€179.29 (excl. btw)	add to cart
611	BSP FF Stainless steel CF8M (1.4408) 50 Below the seat DN20 - 3/4''	1454305	S1000564	€188.81 (excl. btw)	add to cart
612	BSP FF Stainless steel CF8M (1.4408) 63 Below the seat DN20 - 3/4''	1454405	S1000565	€224.89 (excl. btw)	add to cart
613	BSP FF Stainless steel CF8M (1.4408) 63 Below the seat DN25 - 1''	1454406	S1000566	€238.63 (excl. btw)	add to cart
614	BSP FF Stainless steel CF8M (1.4408) 90 Below the seat DN25 - 1''	1454506	S1000567	€310.81 (excl. btw)	add to cart
615	BSP FF Stainless steel CF8M (1.4408) 90 Below the seat DN32 - 1''1/4	1454507	S1000568	€364.91 (excl. btw)	add to cart
616	BSP FF Stainless steel CF8M (1.4408) 90 Below the seat DN40 - 1''1/2	1454508	S1000569	€418.20 (excl. btw)	add to cart
617	BSP FF Stainless steel CF8M (1.4408) 110 Below the seat DN50 - 2''	1454609	S1000570	€605.71 (excl. btw)	add to cart
